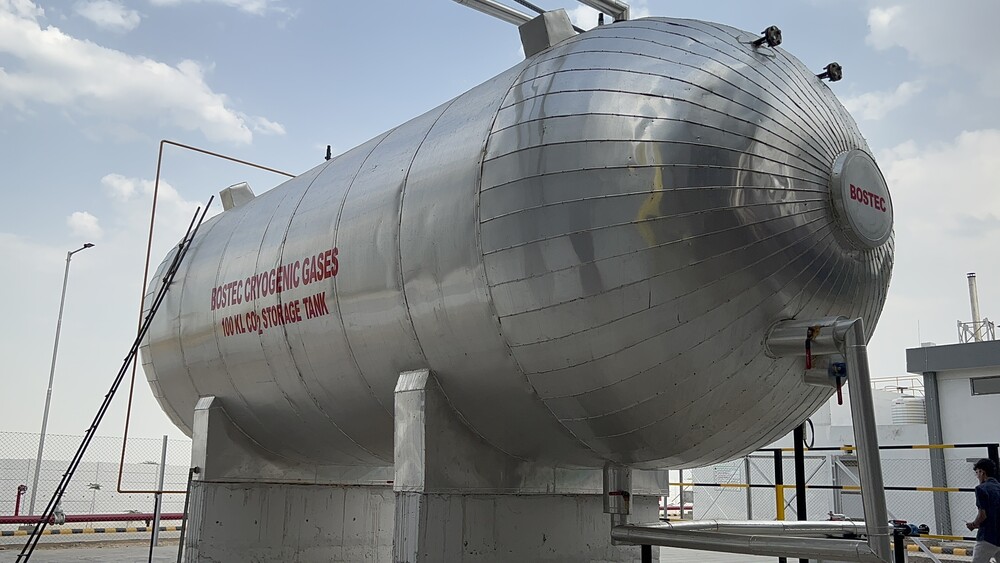

Send InquiryCO2 STORAGE TANK
Price 1000000 INR/ Unit
CO2 STORAGE TANK Specification
- Usage & Applications
- Storing liquefied CO2 for industrial, food & beverage, fire fighting applications
- Model No
- As per specification
- Production Capacity
- As per requirement
- Accessories
- Safety Valve, Pressure Gauge, Level Indicator, Transfer Pump (optional)
- Efficiency (%)
- Up to 98% thermal insulation efficiency
- Temperature Range
- -40C to +50C
- Motor Power
- Up to 15 kW (for auxiliary equipment)
- Automation Grade
- Automatic
- Driven Type
- Electric
- Installation Guideline
- Foundation required as per tank size; supplied with installation manual
- Frequency
- 50/60 Hz
- Type
- CO2 Storage Tank
- Material
- Stainless Steel
- Computerized
- No
- Automatic Grade
- Automatic
- Drive Type
- Electric
- Voltage
- 380-415 V
- Power
- Custom as per capacity
- Weight (kg)
- Variable as per model
- Dimension (L*W*H)
- Custom as per design
- Color
- White / Grey
- Capacity
- 5,000 - 50,000 litres (standard); customizable
- Features
- Corrosion Resistant, High Pressure Tolerance, Low Maintenance
- Surface Finish
- Epoxy / PU Painted
- Power Consumption
- Depends on size & application
- Machine Type
- Vertical / Horizontal Cylindrical
- Maintenance Access
- External ladder and platform
- Testing
- Hydrostatic & Pneumatic Tested
- Manhole Diameter
- 450 mm (standard)
- Packaging
- Standard Export Worthy Packaging
- Operating Pressure
- Up to 22 Bar
- Inner Vessel Thickness
- 6 - 16 mm (as per design)
- Filling Ratio
- Approximately 90% of gross volume
- Outer Vessel Thickness
- 5 - 12 mm (as per design)
- Insulation Type
- Vacuum Insulated with Perlite/PUF
- Design Pressure
- 16 to 24 Bar
- Application Compliance
- Meets ISO and local regulatory standards
- Safety Features
- Dual Relief Valve, Emergency Vent, Excess Flow Valve
- Evaporation Rate
- 0.2% per day (maximum)
- Seismic Design
- Optional, as per site requirement
CO2 STORAGE TANK Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Vadodara
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 1 Unit Per Week
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Main Export Market(s)
- Asia
- Main Domestic Market
- , All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal
About CO2 STORAGE TANK
CO2 Storage Tank Manufacturer in Vadodara - VISHWAKARMA ENGINEERING
VISHWAKARMA ENGINEERING is a leading manufacturer and supplier of high-quality CO2 Storage Tanks designed for safe storage, handling, and transportation of carbon dioxide gas in industrial applications. Our advanced CO2 storage systems are engineered with precision technology, superior safety standards, and durable construction to ensure reliable performance in demanding industrial environments.
We manufacture customized CO2 Storage Tanks for breweries, distilleries, beverage industries, food processing plants, pharmaceutical industries, chemical plants, gas recovery systems, and industrial gas processing applications.
CO2 Storage Tank Product Description
A CO2 Storage Tank is a specially designed pressure vessel used for storing liquid or gaseous carbon dioxide under controlled pressure and temperature conditions. These tanks are manufactured to safely handle CO2 for industrial processing, gas recovery, beverage carbonation, refrigeration, fire suppression systems, and various industrial applications.
The tanks are equipped with insulation systems, pressure control devices, safety valves, level indicators, and advanced instrumentation for safe and efficient operation. CO2 storage tanks can be designed for low-pressure or high-pressure applications depending on industrial requirements.
At VISHWAKARMA ENGINEERING, our CO2 storage tanks are manufactured using premium-grade stainless steel and high-quality industrial components to ensure long service life, corrosion resistance, and operational safety.
Technical Specifications of CO2 Storage Tank
|
Specification |
Details |
|---|---|
|
Storage Capacity |
500 Liters to 100 KL |
|
Tank Type |
Vertical / Horizontal |
|
Operating Pressure |
Customized as per requirement |
|
Operating Temperature |
-40oC to Ambient |
|
Material of Construction |
SS304 / SS316 / Carbon Steel |
|
Insulation Type |
PUF / Vacuum Insulated |
|
Design Code |
ASME / IS Standards |
|
Surface Finish |
Mirror / Matt / Industrial Finish |
|
Mounting Type |
Skid Mounted / Stationary |
|
Safety Features |
Pressure Relief Valve, Safety Valve |
|
Accessories |
Level Gauge, Pressure Gauge, Temperature Indicator |
|
Connection Type |
Flanged / Threaded |
|
Testing |
Hydraulic & Pneumatic Tested |
|
Application |
Liquid & Gaseous CO2 Storage |
Features of CO2 Storage Tank
Heavy Duty Pressure Vessel Construction
Manufactured using high-strength industrial-grade materials for safe CO2 storage.
Excellent Corrosion Resistance
Available in stainless steel construction for long-lasting durability.
Efficient Thermal Insulation
PUF or vacuum insulation minimizes temperature loss and improves storage efficiency.
Leak Proof Design
Precision welding and quality testing ensure safe and leak-free operation.
High Storage Efficiency
Designed for maximum storage capacity with optimized space utilization.
Advanced Safety Systems
Equipped with pressure relief valves, safety devices, and monitoring systems.
Low Maintenance Requirement
Simple operational design with easy maintenance accessibility.
Customized Tank Design
Available in different capacities and configurations as per customer requirements.
Advantages of CO2 Storage Tank
-
Safe storage of carbon dioxide gas
-
Maintains stable pressure and temperature
-
High durability and long service life
-
Corrosion-resistant industrial design
-
Energy efficient insulated structure
-
Leak-proof and safe operation
-
Suitable for liquid and gaseous CO2
-
Low maintenance and operational cost
-
Custom-built solutions available
-
Reliable performance in industrial applications
Applications of CO2 Storage Tank
CO2 Storage Tanks are widely used in:
-
Breweries
-
Distilleries
-
Beverage Industries
-
Food Processing Plants
-
Pharmaceutical Industries
-
Chemical Processing Plants
-
Fire Fighting Systems
-
Gas Recovery Plants
-
Carbonated Drink Production
-
Refrigeration Systems
-
Dry Ice Manufacturing
-
Industrial Gas Storage Facilities
-
Welding Industries
-
Biogas Processing Plants
-
Industrial Process Plants
Working Principle of CO2 Storage Tank
The CO2 gas or liquid is stored inside a specially designed pressure vessel under controlled pressure and temperature conditions. The tank insulation system helps maintain the required temperature while minimizing heat transfer from the external environment.
Safety devices such as pressure relief valves, level indicators, and control instruments continuously monitor tank operation to ensure safe storage and handling of carbon dioxide.
The stored CO2 can then be supplied to industrial processes, bottling systems, gas recovery units, or transportation systems as required.
Types of CO2 Storage Tanks We Manufacture
-
Liquid CO2 Storage Tank
-
Low Pressure CO2 Storage Tank
-
High Pressure CO2 Tank
-
Vertical CO2 Storage Vessel
-
Horizontal CO2 Storage Tank
-
Vacuum Insulated CO2 Tank
-
Stainless Steel CO2 Storage Tank
-
Cryogenic CO2 Storage Tank
-
Industrial Gas Storage Tank
-
Customized CO2 Storage Systems
Why Choose VISHWAKARMA ENGINEERING?
Customized Engineering Solutions
We manufacture tailor-made CO2 storage tanks according to industrial process requirements.
Premium Quality Manufacturing
Manufactured using certified raw materials and advanced fabrication technology.
Strong Technical Expertise
Experienced engineering team with extensive industrial equipment knowledge.
High Safety Standards
Designed according to industrial pressure vessel safety norms.
Reliable Industrial Performance
Heavy-duty tanks suitable for continuous industrial applications.
Competitive Pricing
Affordable and cost-effective storage solutions.
Excellent After Sales Support
Technical support, maintenance assistance, and prompt customer service.
CO2 Storage Tank
-
CO2 Storage Tank Manufacturer
-
Liquid CO2 Storage Tank Supplier
-
Industrial CO2 Tank Manufacturer
-
Stainless Steel CO2 Storage Tank
-
Cryogenic CO2 Storage Tank Manufacturer
-
CO2 Pressure Vessel Manufacturer
-
Industrial Gas Storage Tank Supplier
-
Vertical CO2 Storage Tank
-
Horizontal CO2 Tank Manufacturer
-
Vacuum Insulated CO2 Tank
-
Carbon Dioxide Storage Vessel
-
Industrial CO2 Storage System
-
Low Pressure CO2 Storage Tank
-
High Pressure CO2 Tank Supplier
-
CO2 Storage Tank Manufacturer in Vadodara
Frequently Asked Questions (FAQ)
What is a CO2 Storage Tank?
A CO2 Storage Tank is a pressure vessel used for storing liquid or gaseous carbon dioxide safely under controlled conditions.
Which industries use CO2 Storage Tanks?
These tanks are used in breweries, beverage industries, food processing plants, pharmaceuticals, chemical industries, and gas recovery systems.
What materials are used for manufacturing?
We manufacture tanks using SS304, SS316, and carbon steel depending on industrial requirements.
Can the tank be customized?
Yes, VISHWAKARMA ENGINEERING provides customized CO2 storage tanks in different capacities and configurations.
What safety features are included?
Our tanks include pressure relief valves, safety valves, level indicators, and monitoring instruments for safe operation.
Trusted CO2 Storage Tank Manufacturer
VISHWAKARMA ENGINEERING is committed to delivering advanced CO2 Storage Tanks with superior engineering, reliable safety systems, and durable industrial performance. Our customized storage solutions are designed to meet demanding industrial requirements while ensuring efficiency, safety, and long-term operational reliability.
Directions & Type of Usage: Effective Application for All Sectors
CO2 Storage Tanks are designed for automated, PLC-controlled operation, ensuring reliable delivery of liquefied CO2. Suitable for both vertical and horizontal installations, they cater to industrial, food & beverage, and fire fighting applications. To use, follow the provided installation guideline and ensure the tank is on a firm foundation. Daily monitoring via the external ladder, platform, and integrated level indicator maximizes safety and performance, making them ideal for continuous, heavy-duty or batch processes.
Global Export Markets & Secure Shipping: Ask for Offers!
Our CO2 Storage Tanks are a top choice in global markets, including Asia, the Middle East, and Africa. Secure shipping is ensured through standard export-worthy packaging. Samples are available upon request-just ask for the latest offer or pricing. Each shipment is protected by robust packing materials and shipped with a detailed installation manual. For bulk or custom inquiries, our team offers competitive asking prices and flexible export terms to meet your specific project requirements.
FAQ's of CO2 STORAGE TANK:
Q: How does the insulation type of the CO2 storage tank benefit my operation?
A: The vacuum insulation with perlite/PUF ensures up to 98% thermal insulation efficiency, minimizing evaporation rates (maximum 0.2% per day), which helps maintain product integrity and reduces loss.Q: What safety features are included with the CO2 storage tank?
A: Each tank is equipped with dual relief valves, emergency vent, and excess flow valve, providing multi-layered safety for high-pressure storage and peace of mind during operation.Q: Where can the CO2 storage tank be installed?
A: The tank is designed for versatile use-vertical or horizontal-requiring a solid foundation as outlined in the installation manual. Exterior ladders and platforms make regular maintenance accessible and safe.Q: What is the process for ordering and installation?
A: Upon placing your order, tanks are custom-built as per your requirements and shipped with an installation manual. Foundation preparation is essential, and our team can assist with technical guidance for setup.Q: How can I request a sample or check the asking price?
A: You can request samples or get the latest asking price and offer details by contacting our sales team. Pricing is competitive and flexible, adapting to your project and market needs.Q: What applications benefit most from this CO2 storage tank?
A: Industries including manufacturing, food & beverage processing, and fire fighting benefit from dependable, large-volume CO2 storage, supported by automated, low-maintenance operation and high-pressure performance.
